Model: OD-TISS4850
Nominal Voltage:220/230/240VAC
Nominal Frequency: 50/60Hz
Output Power Factor: 1.0
Use temperature Range: －40℃～＋50℃
Application field:
Local Area
Telecom
Traffic Lights
Networks
CCTV
编号 :
OD-TISS4850订单(起订量) :
10 pcs支付 :
T/T产品产地 :
China颜色 :
RAL7035装运港 :
Shenzhen交货时间 :
3 weeks重量 :

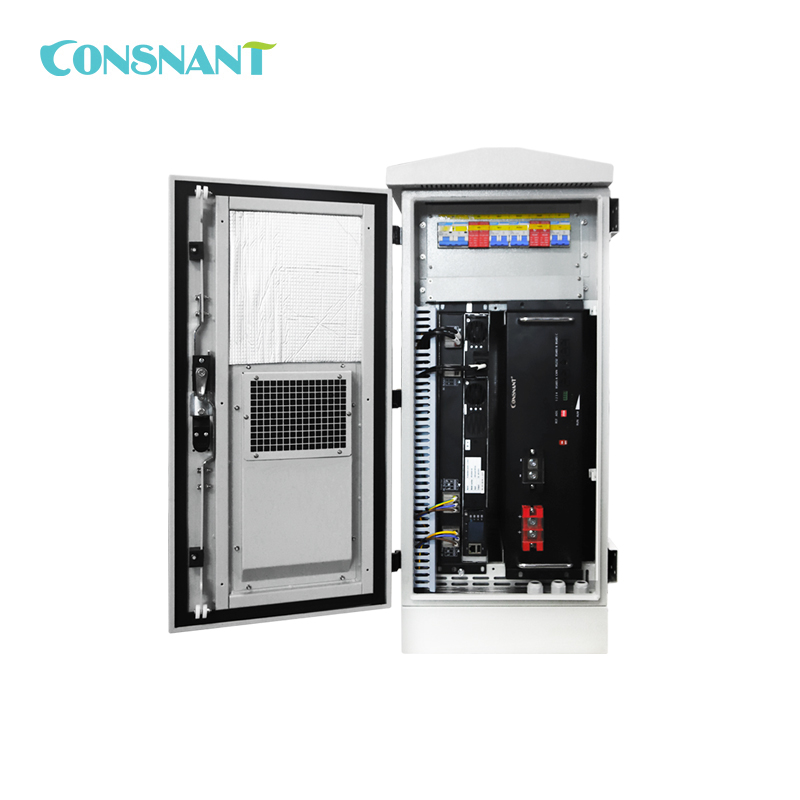

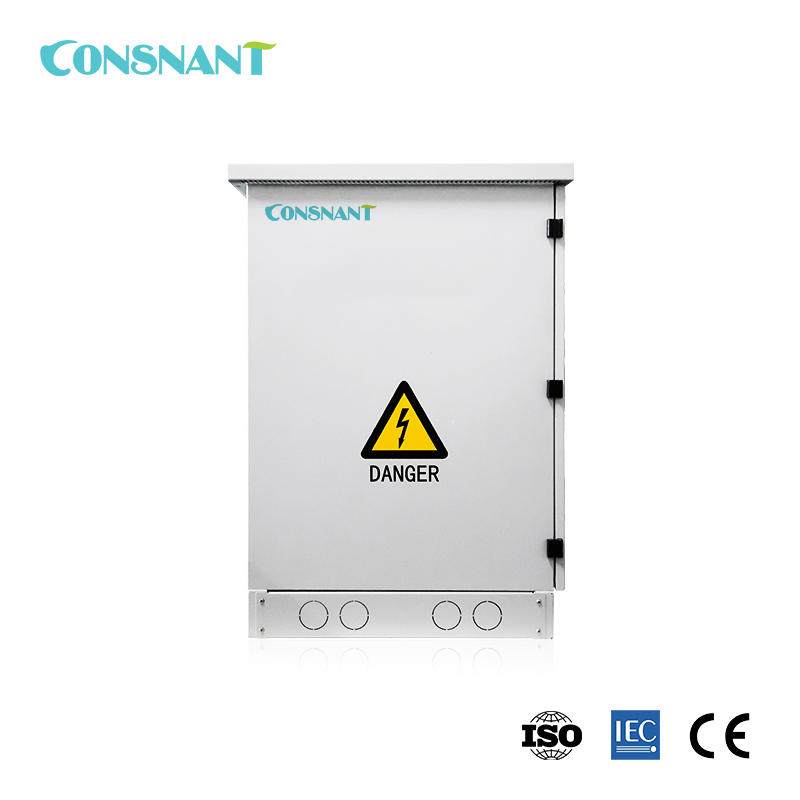

100 KgOutdoor Hybrid Power System 48VDC 50A
Application:
OD-TISS4850 series outdoor hybrid power system is integrated of multi-energy complementary power
supply ,battery storage and backup system, cooling system, monitor system to provide safe and reliable
environment for outdoor equipments, such as traffic light, road surveillance cameras etc.
Reliable Power Supply:
The system is designed to efficiently utilization of clean energy, reducing or eliminating the reliance on
mains electricity. Normally, the system is powered by solar panels, supply to inverter, DC load and
charge the batteries as well. At the same time, the inverter convert DC power to AC power to supply
AC loads. When there is no solar power or the solar is insufficient, the system changes to the mains
to power or activate the battery backup power supply. The interactive power supply ways has enhanced
the safety and stability of the system.
System Introdution:
The system configuration supports 1 hot swappable inverter modules and 1 hot swappable Low voltage solar charge controller module. The system monitoring module has battery management functions and power system monitoring functions. It can be configured with appropriate multiple sensors to achieve environmental monitoring. It can also provide RS485 communication interfaces for remot monitoring and unmanned operation.

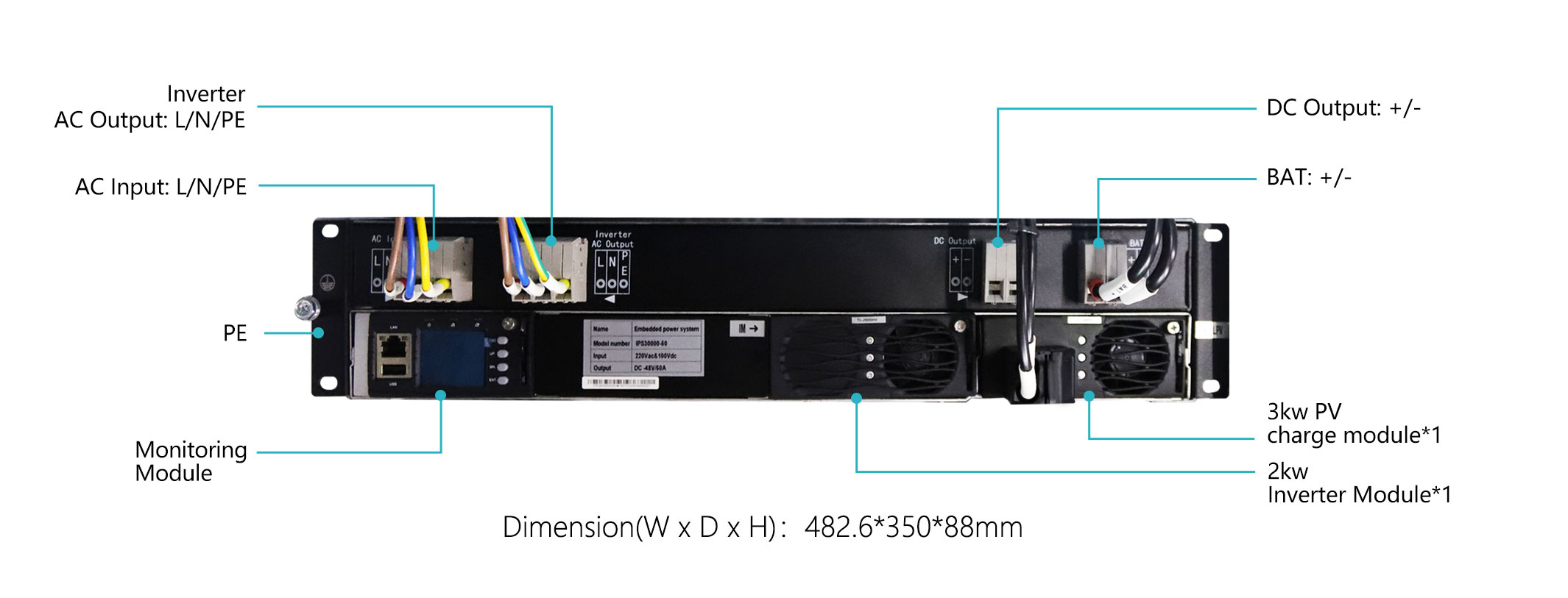

Embedded Power Supply Frame:
Technical Specifications:
| Model | OD-TISS4850 | |
| Capacity | 2KW | |
| AC Input | ||
| Input Voltage | 220VAC 50/60Hz | |
| Input Voltage Range | 176Vac to 265Vac | |
| Frequency Range | 47Hz~53Hz | |
| Max.Input Current | 20A | |
| Input Current THD | <5%@output pure resistive full load | |
| Power Factor | 0.99@output pure resistive full load | |
| PV Input | ||
| Input Voltage | 100Vdc | |
| Input Voltage Range | 58Vdc~150Vdc | |
| Maximum Input Voltage | 165Vdc(The power supply cannot be damaged) | |
| Maximum Input Current | 45A | |
| MPPT Efficiency | ≥99.9% | |
| Output | ||
| DC Output Rated Voltage | 54.5V | |
| DC Output Voltage Adjustable Range | 43.2Vdc~+58Vdc | |
| DC Maximum Output Current | Constant current 52A | |
| AC Output Rated Voltage | 220Vac/230Vac(Optional) | |
| Output Frequency | Rated 50Hz/60Hz(Frequency optional) | |
| AC Output Power | 2000VA | |
| Battery | ||
| Battery Voltage | 48VDC | |
| Battery Charge and Discharge Current | 1C | |
| Battery Capacity | 50~100AH | |
| Battery Size | 3U | |
| Input Voltage | 42Vdc~58Vdc | |
| Maximum Input Current | 62.5A(RMS) | |
| Maximum Input Voltage | 60Vdc(The power supply cannot be damaged) | |
| Configurations | ||
| Structure | 1U AC and DC power distribution space 1U Inverter module space and PV module space and SMU 3U 48VDC Lithium battery pack |
|
| MTBF | ||
| Module(Magnitude:10) | 10000 hours(25℃,rated input,full load output bellcore stress method prediction) | |
| System(Magnitude:10) | 10000 hours | |
| Environmental Conditions | ||
| Use Temperature | -40~50℃ | |
| Humidity | 5%RH~90%RH | |
| Altitude | 3000m | |
| Sound Noise | ≤60dB(A) | |
| Module Forced Air Cooling | Forward wind comes out after forward wind | |
| Cabinet Forced Air Cooling | Bottom air in,top air out | |
| Physical Characteristics | ||
| Weight(KG) | 100 KG | |
| Cabinet Dimension (WxDxH)mm | 530*350*840mm | |
