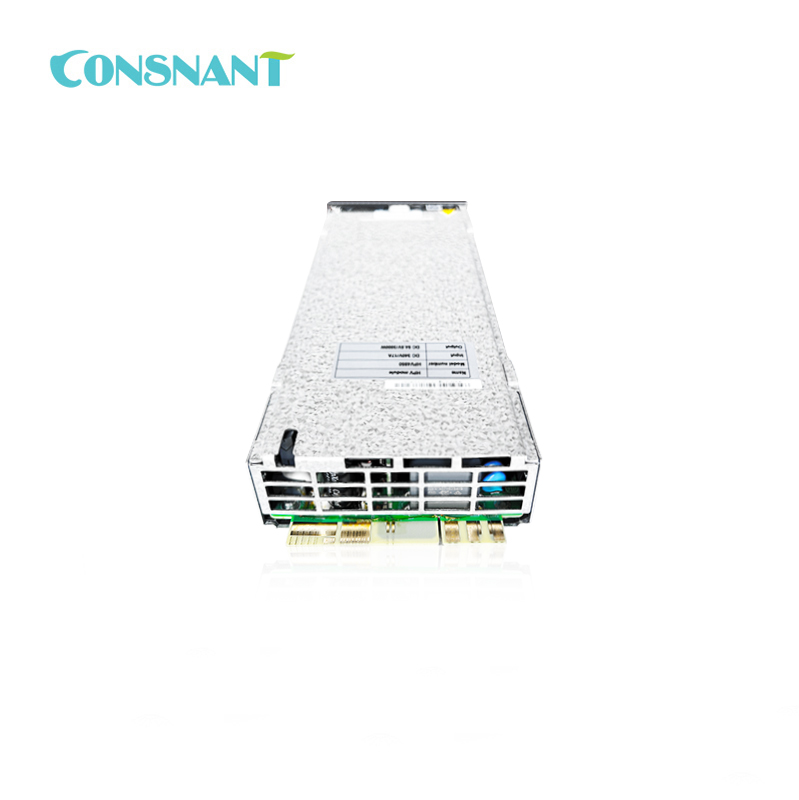

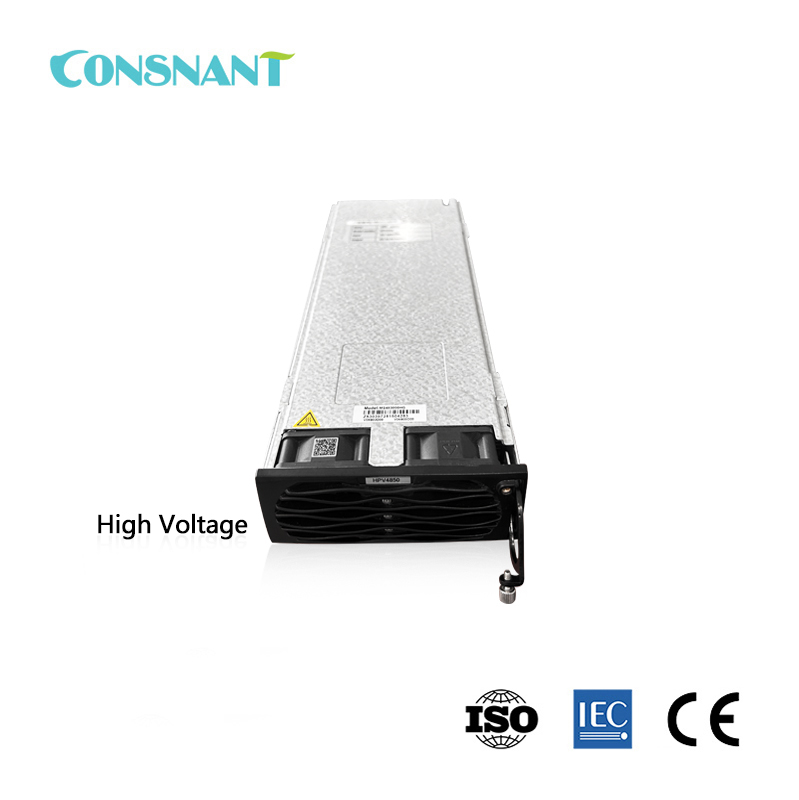

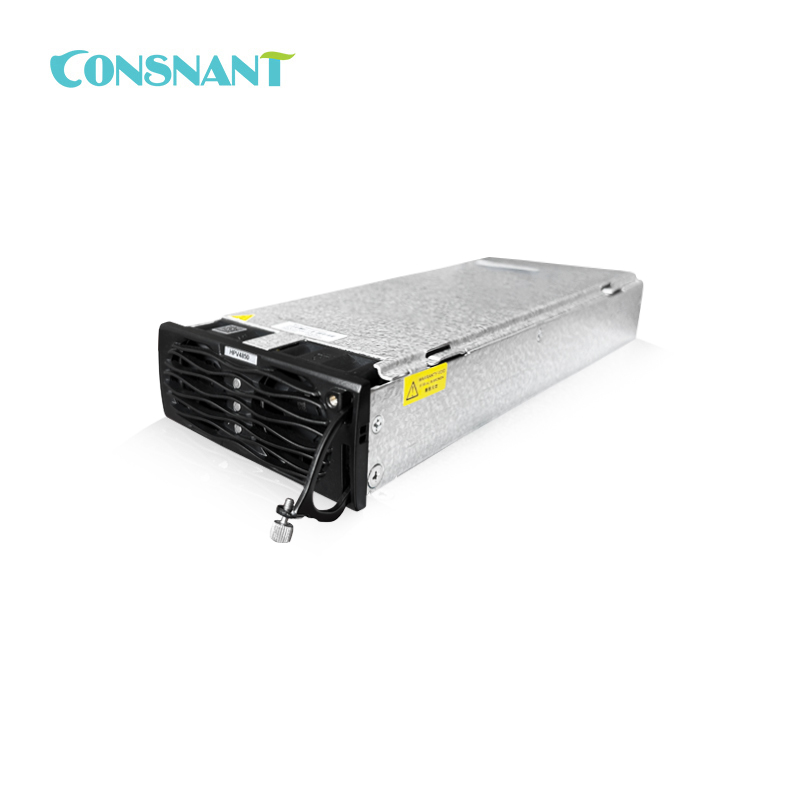

High Voltage Solar Charge Controller Module

(High Voltage) Model: TS-4850H

Capacity：50A

Input: 120-425Vdc

Output: 42-58Vdc

编号 :
TS-4850H
订单(起订量) :
10 pcs
支付 :
T/T
产品产地 :
China
颜色 :
Silver
装运港 :
Shenzhen
交货时间 :
3-7 days
重量 :
<2 Kg

现在咨询

High Voltage Solar Charge Controller Module

Technical Parameters

Input
Input Voltage	120Vdc～425Vdc (start voltage greater>160Vdc)
Rated Input Voltage	340Vdc
MPPT Voltage Range	120Vdc～340Vdc
Max.Input Current	17A
MPPT Accuracy	≥99%@load≥400W
Reverse Polarity Protection	Input polarity error,not damaged
Input Fuse	Positive and negative fuses
Max.Input Voltage	450Vdc(power supply cannot be damaged)
Output
Output Voltage	+54.4Vdc
Efficiency	≥96%@340Vdc/40%~70%Load-54.5Vdc
Rated Current	55A@-48Vdc
Output Current Limit Point	0-62.5A
Peak Current	62.5A
Temperature Coefficient (1/℃)	≤±0.02%
Standby Power Consumption	≤4W(no loss in standby at night)
Max.Number of Parallel Units	31
Physical
Weight	<2kg

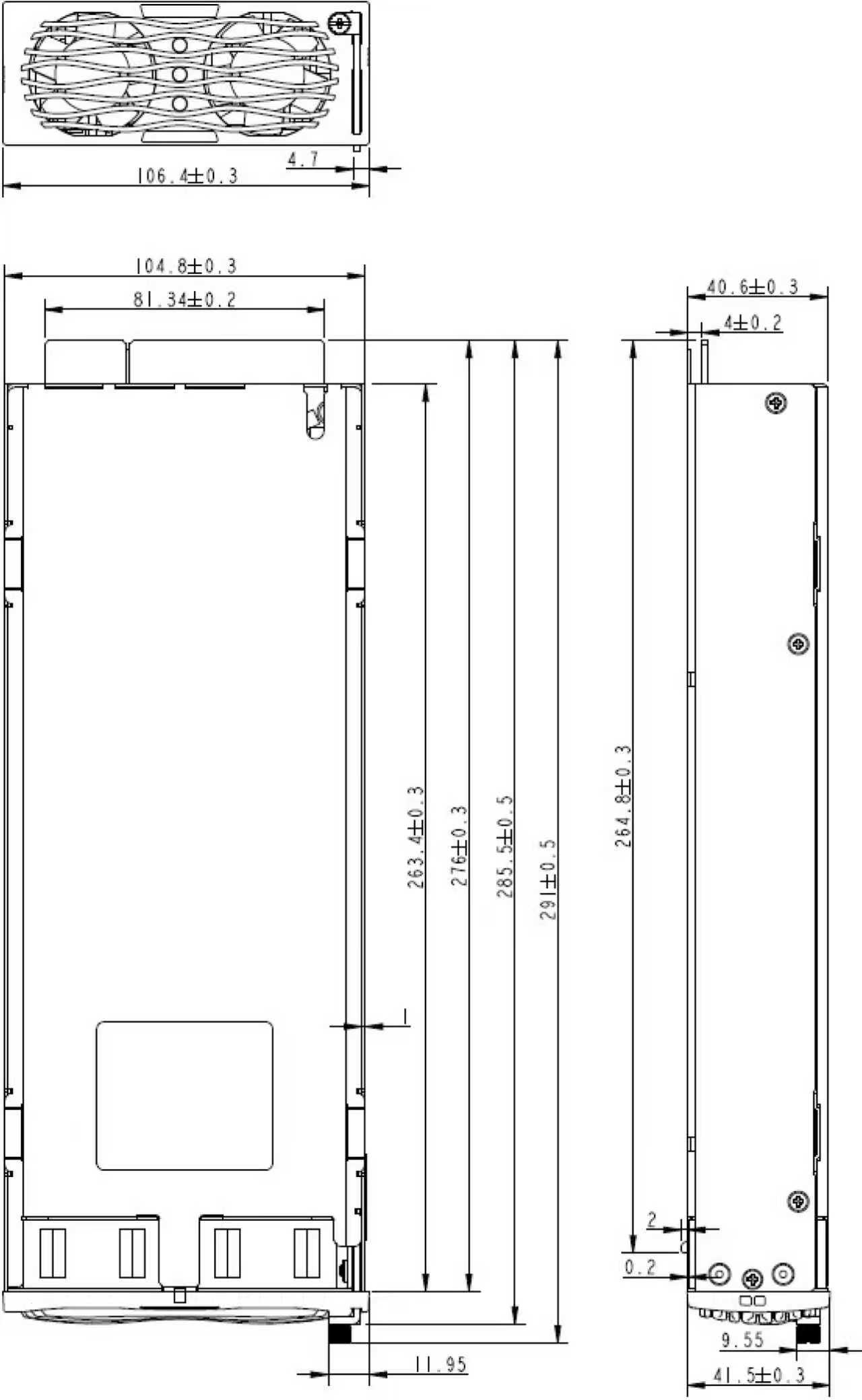

Dimension(W x D x H)mm	106.528641.5

标签 :
