Model: TI-2000HV
Capacity：2KW
Input Voltage Range: 176Vac～265Vac(176V-200V linear drop)
Input Voltage Range: 42Vdc~58Vdc
Output Voltage: Rated 220/230/240Vac(output voltage optional)
编号 :
TI-2000HV订单(起订量) :
10 pcs支付 :
T/T产品产地 :
China颜色 :
Silver装运港 :
Shenzhen交货时间 :
3-7 days重量 :
<2 Kg

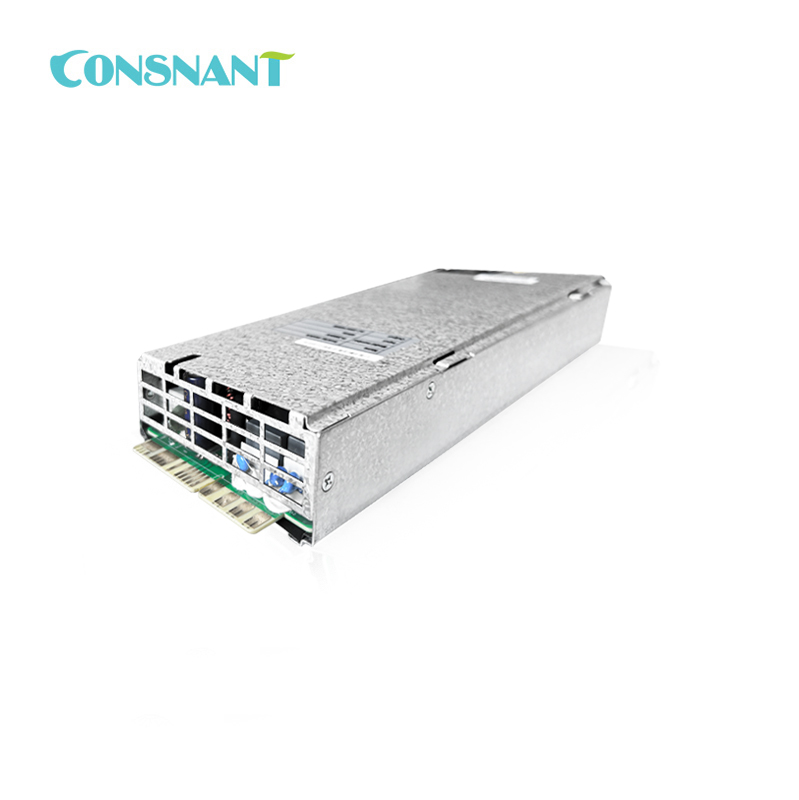

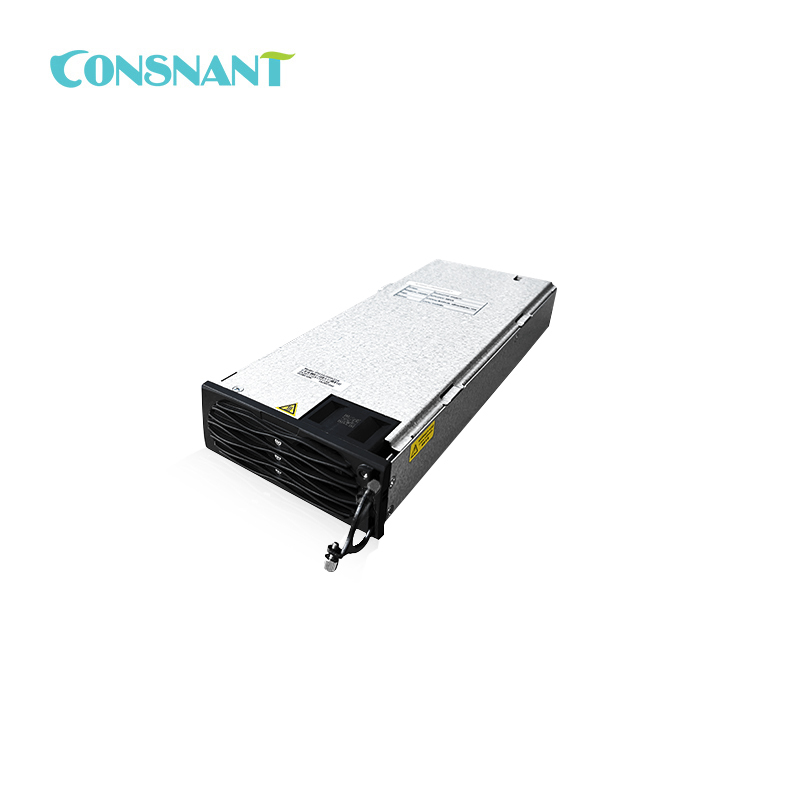

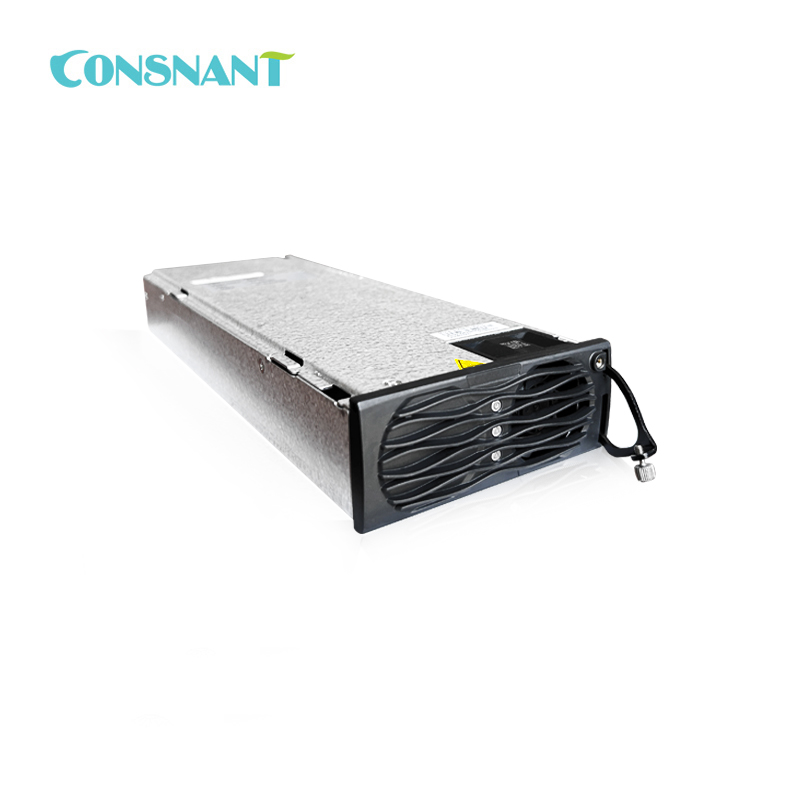

Description
The TI-2000HV communication inverter module has three ports: AC input, AC output, and DC (input/output). Its main function is to convert AC power supply to AC output through rectification and inversion when the AC power supply is normal, and to switch to DC power input and convert it to AC output through inversion when the AC power supply is abnormal. This product has good electrical performance, meets industry safety regulations and EMC standards, has intelligent monitoring and network management functions, and supports multi-module parallel operation.
Technical Parameters:
| AC Input | ||
| Input Mode | TT/TN/IT (single-phase input) | |
| Input Voltage Range | 176Vac～265Vac(176V-200V linear drop) | |
| Rated Input Voltage | 220Vac | |
| Input Maximum Current | 22A | |
| Starting Surge Current | <15A | |
| Input THDi | <5%Output pure resistance full load | |
| Input PF | >0.99@Output pure resistance full load | |
| DC Input | ||
| Input Voltage Range | 42Vdc~58Vdc | |
| Rated Input Voltage | 53.5Vdc | |
| Input Maximum Current | 62.5A(RMS) | |
| Starting Surge Current | <45A | |
| AC Output | ||
| Output Voltage | Rated 220/230/240Vac(output voltage optional) | |
| Output Frequency | Rated 50Hz/60Hz(frequency optional) | |
| Power | 1600VA~2000VA(176Vac-200Vac) 2000VA(200Vac-264Vac) |
|
| Standby Power | ≤5W | |
| Boot Start Time | <10S | |
| Efficiency | >94%(peak value)@AC INPUT >92%(peak value)@DC INPUT |
|
| Physical |
||
| Dimensions |
41.5mm (high) 106.4mm (width) 291mm (deep) Note: For the detailed slot design, please contact the business personnel to provide the 3D model of the module |
|
| Weight |
<2 Kg(excluding packing material) |
|
