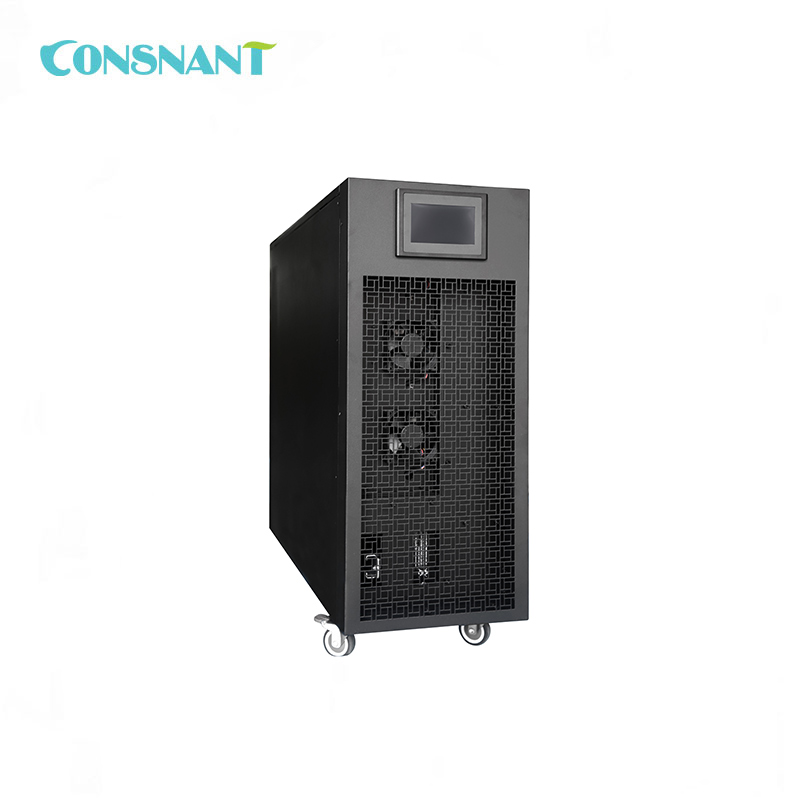

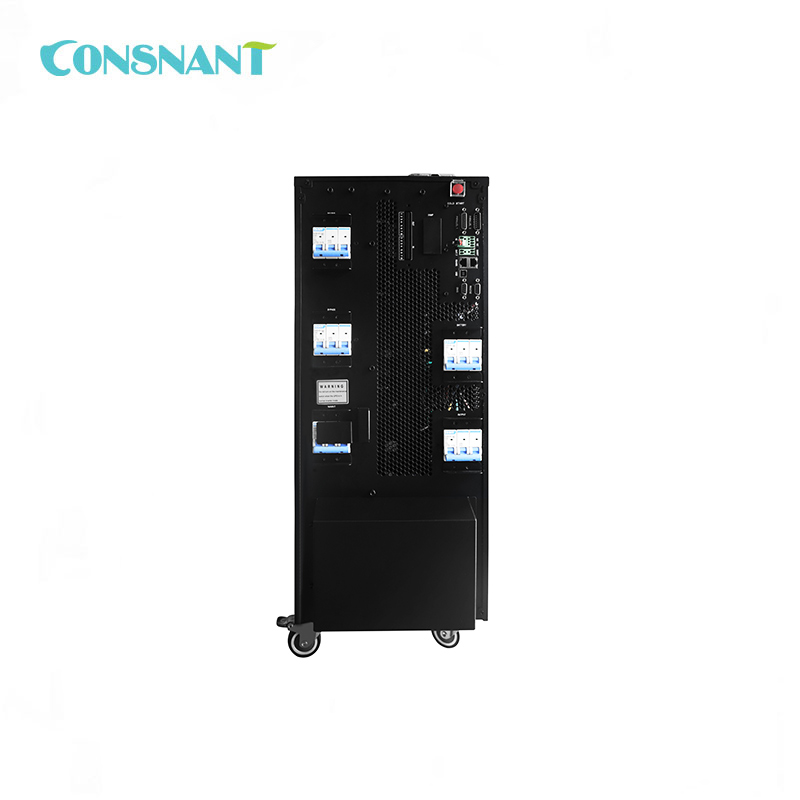

3P/3P 400V高频在线式UPS 10-20K
型号：CNH330 10 - 20KVA
标称容量：10–20KW
标称电压：380/400/415VAC
输入电压范围：110 – 300VAC
标称频率：50/60HZ
编号 :
CNH330 10 - 20KVA订单(起订量) :
1 pcs支付 :
T/T产品产地 :
China颜色 :
Black装运港 :
Shenzhen交货时间 :
1 week重量 :
28-141 Kg3P/3P 400V高频在线式UPS 10-20K
特征：
● DSP技术保证高可靠性
DSP和MCU双芯片，保障产品可靠性。
● 输出功率因数1
对于关键应用，这款输出功率因数为 1.0 的三相在线 UPS 可确保更高的效率和先进的性能。
● 采用最新碳化硅二极管，提升系统效率
通过采用最新的碳化硅二极管，无论在交流模式和电池模式下，效率均高于96%。
● 双输入
CNH330系列还提供可选的双输入，以支持各种输入，为系统配置提供灵活性。
● 非常强大的充电器，缩短充电时间
10/20Kva 的充电器额定值调整为 UPS 容量的 30%。30Kva 及以上型号的充电器额定值也为 UPS 容量的 20%。
● 充电电流可调
用户可以根据不同的电池配置通过LCD设置调整充电电流。
● 共用电池组最多可并联6台
并联系统最多支持6台普通电池组并联。
● 5英寸彩色触摸式液晶显示屏
内置 5 英寸彩色触摸式 LCD 显示屏，具有 500 个事件/数据日志。
● 可选配可编程继电器干接点卡
可通过软件配置 4 个干接点端口定义 各种应用程序。
● 语音警告/错误代码提示
内置扬声器，具有真人声音警告/ 错误代码通知而不是传统的蜂鸣声。
● 过载能力高
支持60分钟至1分钟110%过载能力 150% 负载时的过载情况。
● 可调节电池设计
连接电池数量可灵活调整 根据不同的功率需求。
● 动态密码功能优化服务性能
该动态密码是由我们自动生成的 专属实用工具。每次需要改变的时候 服务相关的设置，这个实用工具会生成一个 时间上的唯一密码。它可以保护 UPS 免受意外影响 由于未经授权的设置而进行的操作。
● 电源步入功能
CNH330设计有灵活的电源步入方式 调整电源步入时间。此设置将优化 发电机尺寸并减少对交流电源的影响 不同并联UPS系统的介入时间段不同 当交流电网恢复时。
Technical Parameters:
|
MODEL |
10K(S)/10K(L) |
15K(S)/15K(L) |
20K(S)/20K(L) |
|
|
CAPACITY* |
10KVA / 10KW |
15KVA / 15KW |
20KVA / 20KW |
|
|
INPUT |
||||
|
Voltage Range |
Low Line Loss |
110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load |
||
|
Low Line Comeback |
Low Line Loss Voltage + 10V |
|||
|
High Line Loss |
300 VAC(L-N) ± 3 % at 50% Load; 276 VAC(L-N) ± 3 % at 100% Load |
|||
|
High Line Comeback |
High Line Loss Voltage - 10V |
|||
|
Frequency Range |
46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system |
|||
|
Phase |
3 Phase with Neutral |
|||
|
Power Factor |
≧ 0.99 at 100% Load |
|||
|
OUTPUT |
||||
|
Phase |
3 Phase with Neutral |
|||
|
Output voltage |
360/380/400/415VAC (Ph-Ph) |
|||
|
208*/220/230/240VAC (Ph-N) |
||||
|
AC Voltage Regulation |
± 1% |
|||
|
Frequency Range (Synchronized Range) |
46Hz ~ 54 Hz @ 50Hz system; 56Hz ~ 64 Hz @ 60Hz system |
|||
|
Frequency Range (Batt. Mode) |
50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
|||
|
Overload |
AC mode |
100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : immediately |
||
|
Battery mode |
100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : immediately |
|||
|
Current Crest Ratio |
3:1 max |
|||
|
Harmonic Distortion |
≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load |
|||
|
Transfer Time |
Line Battery |
0 ms |
||
|
Inverter Bypass |
0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) |
|||
|
Inverter ECO |
<10 ms |
|||
|
EFFICIENCY |
||||
|
AC mode |
95.5% |
|||
|
Battery Mode |
94.5% |
|||
|
BATTERY |
||||
|
Standard Model |
Type |
12 V / 9 Ah |
12 V / 9 Ah |
|
|
Numbers |
(10+10)pcs |
(16+16)pcs |
||
|
Recharge Time |
9 hours recover to 90% capacity |
|||
|
Charging Current (max) |
2.0 A ± 10% (Recommended) 1.0~12.0A (Adjustable) |
|||
|
Charging Voltage |
+/-136.5 VDC ± 1% |
+/-218 VDC ± 1% |
||
|
Long-run Model |
Type |
Depending on applications |
||
|
Numbers |
20 |
32 ~ 40 (adjustable) |
||
|
Charging Current(max.) |
1.0~12.0A ±10% (Adjustable) |
|||
|
Charging Voltage |
+/-136.5 VDC ± 1% |
+/- 13.65 VDC * N ± 1% (N = 16~20) |
||
|
PHYSICAL |
||||
|
Standard Model |
Dimension, D X W X H (mm) |
630 x 250 x 826 |
||
|
Net Weight (kgs) |
124/126 |
139/141 |
||
|
Long-run Model |
Dimension, D X W X H (mm) |
630 x 250 x 826 |
||
|
Net Weight (kgs) |
28/30 |
43/45 |
||
|
ENVIRONMENT |
||||
|
Operation Temperature |
0 ~ 40°C (the battery life will down when > 25°C) |
|||
|
Operation Humidity |
<95 % and non-condensing |
|||
|
Operation Altitude** |
<1000m** |
|||
|
Acoustic Noise Level |
Less than 55dB @ 1 Meter |
Less than 58dB @ 1 Meter |
||
|
MANAGEMENT |
||||
|
Smart RS-232 or USB |
Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC |
|||
|
Optional SNMP |
Power management from SNMP manager and web browser |
|||
*Derate capacity to to 90% when the output voltage is adjusted to 208VAC.
**If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated 1% per 100m.
***Product specifications are subject to change without further notice.
