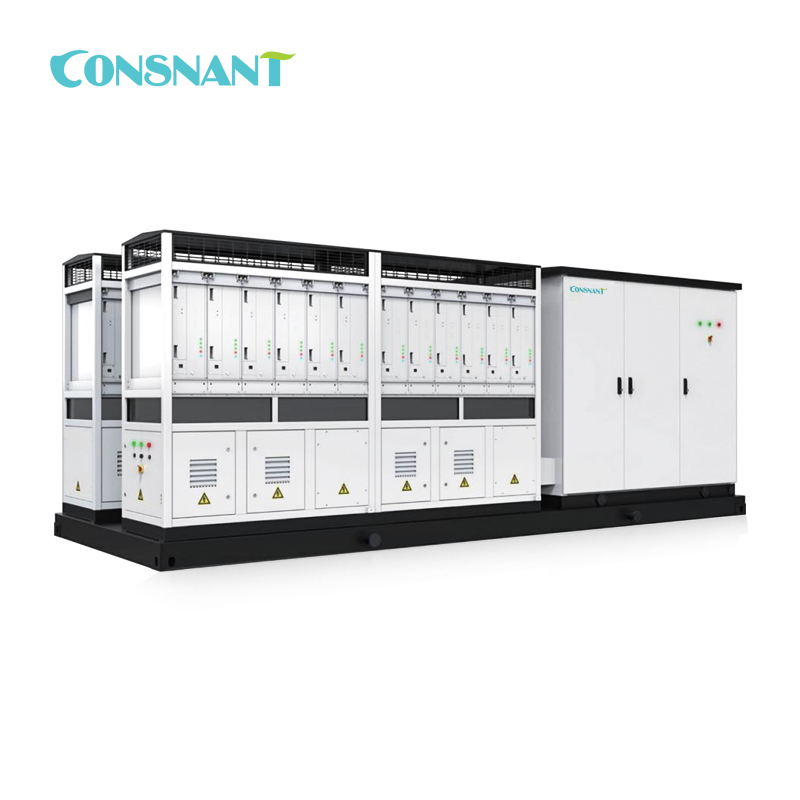

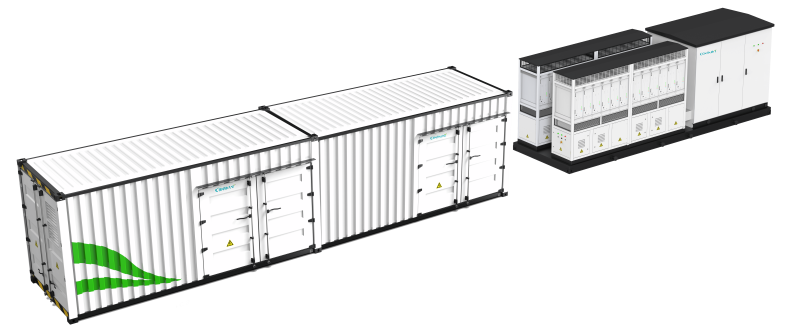

High-Voltage 1500V PCS Cabinet | IP66 Protection
Model: EPCS Series
Rate power: 3450kW
AC Voltage: 690Vac, 3P3W
DC Voltage Range: 1000-1500Vdc
编号 :
EPCS Series订单(起订量) :
1支付 :
T/T产品产地 :
China颜色 :
RAL7035装运港 :
Shenzhen交货时间 :
4-8 weeks重量 :
12t-18tDescription
Integrated cabinet design, highly protectedEquipped with complete protection
Complete protection functions, strong anti-interference ability
Cluster-level battery management, cluster-levelbattery optimization
Longer system life, highly competitive
Integrated cabinet design makes operation moreconvenient
Supports multiple devices in parallel and can beexpanded to MW leve
Support ms-level scheduling response, activenetwork construction
Support high and low voltage ride-through,proactively adapt to weak power grids
Technical Parameters:
| Spec. | EPCS1250-AF | EPCS1725-AF | EPCS1725-AF | EPCS3450-AF | EPCS5000-AF |
| DC side |
|||||
| Max.charging power | 1375kW | 1897kW | 2750kW | 3795kW | 5500kW |
| Max.discharging power | 1375kW | 1897kW | 2750kW | 3795kW | 5500kW |
| Operating voltage range | 1000V~1500V | ||||
| Max.current | 1418A | 1956A | 2835A | 3912A | 5670A |
| AC side | |||||
| Rated voltage | 690V | ||||
| Voltage range | -15%～+10% | ||||
| Wiring method | Three-phase Three-wire | ||||
| Rated power | 1250kW | 1725kW | 2500kW | 3450kW | 5000kW |
| Max.power | 1375kW | 1897kW | 2750kW | 3795kW | 5500kW |
| Rated current | 1046A | 1443A | 2092A | 2887A | 4602A |
| Max.current | 1151A | 1588A | 2301A | 3179A | 5062A |
| Rated frequency | 50/60Hz | ||||
| Power factor | 0.99/-1~1 | ||||
| Current distortion rate | <3%(@rated power) | ||||
| Overload capacity | 110%long term | ||||
| Max.efficiency | 99% | ||||
| Protection characteristics | |||||
| Protection functions | AC overcurrent protection,AC overvoltage protection,AC short circuit protection, DC surge protection,DC overcurrent protection,DC overvoltage protection, overtemperature protection,etc |
||||
| General parameters | |||||
| Dimension(W×H×D) | 4×2.25×0.85m | 4.5×2.25×0.85m | 5×2.25×2.438m / 5.5×2.25×2.438m / 6×2.25×2.438m | ||
| Weight | 12t | 13.5t | 15.5t | 16.5t-18t | |
| Altitude | 4000m(derate above 3000m) | ||||
| Operating temperature | -30℃~60℃(derate above 50℃) | ||||
| Storage temperature | -40℃~70℃ | ||||
| Humidity | 0%RH~100%RH,non-condensing | ||||
| Coolng method | Intelligent air cooling | ||||
| IP rating | IP66 | ||||
| Communication | CAN/RS485/Ethernet/Bluetooth/4G | ||||
| Communication protocol | IEC61850,CAN2.0B,Modbus TCP/RTU | ||||
| *Dimensions and weight subject to actual product. | |||||
